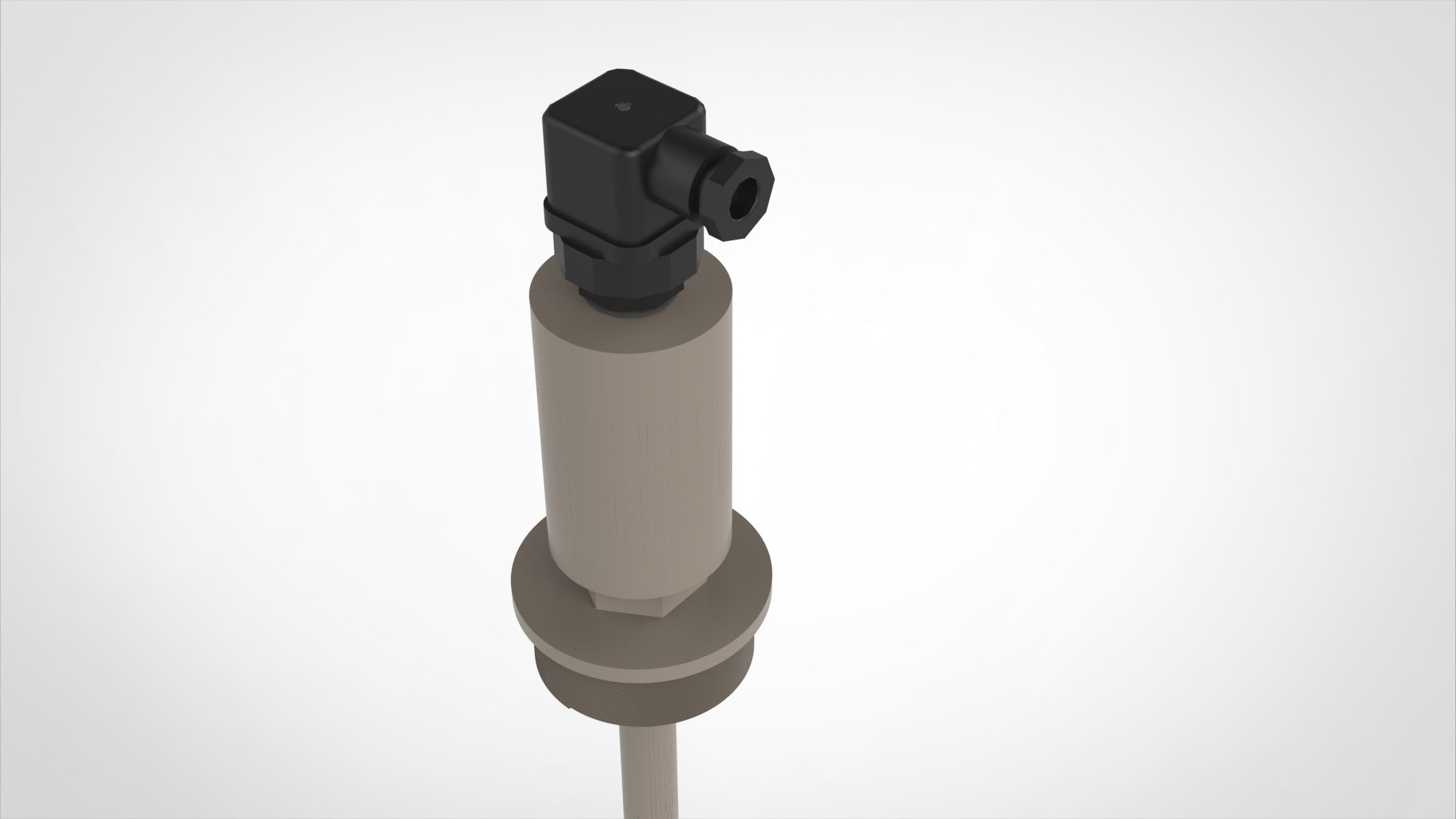

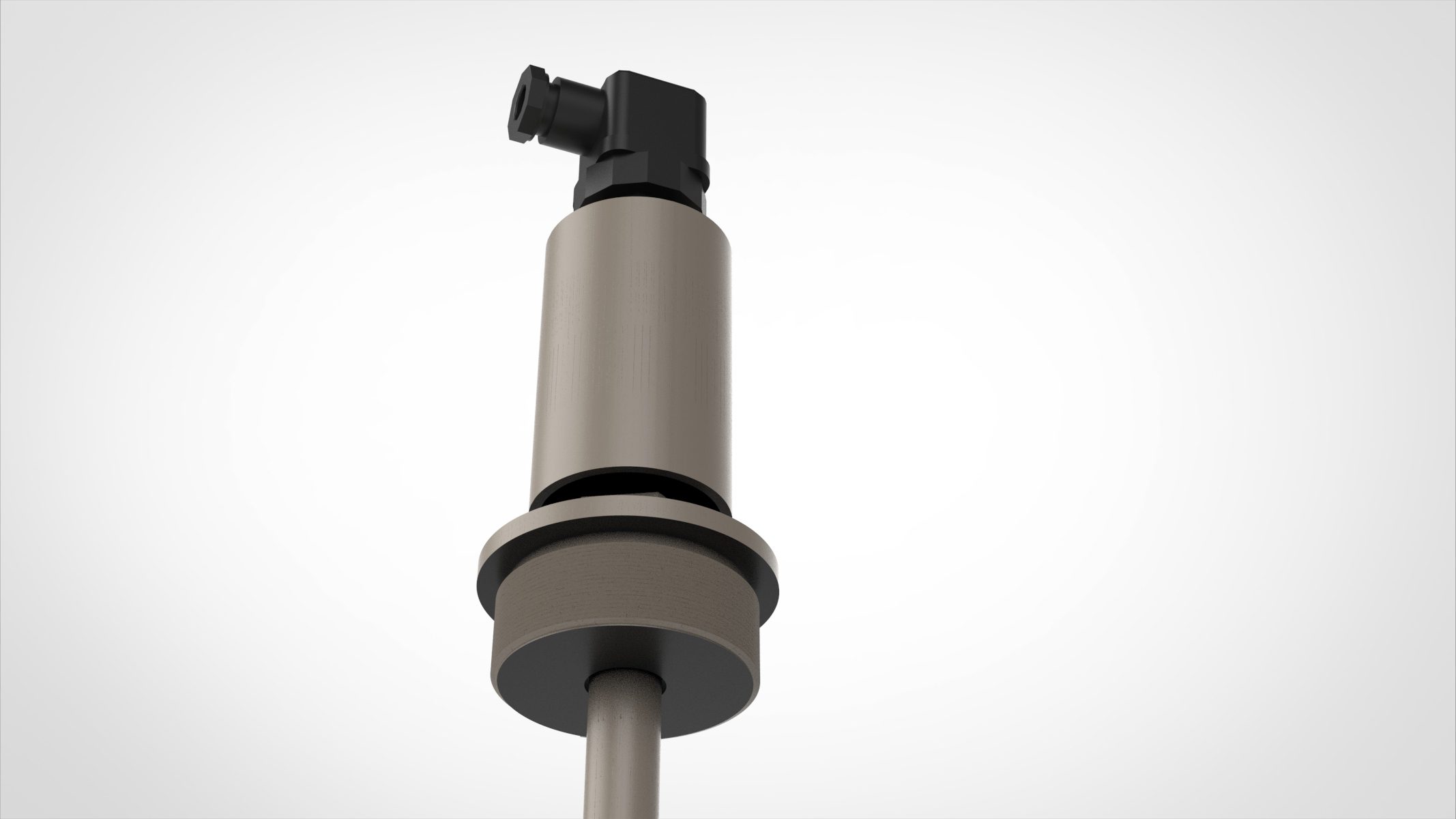

The analog level measuring device NAMW-40 offers precise level monitoring for many applications, e.g. in the pharmaceutical industry. Installation via screw connection or flange, connection via plug connection

For precise technical details and model codes, please refer to our data sheet:

Do you need advice or are you looking for a bespoke solution? No problem! Our team will be happy to help you.

Connection:

3-pin plug connection + PE DIN EN 175301-803

Mounting:

Screw connection 1 ½“, 2″, flange AD120, LK100, material stainless steel, PP, PVDF

Sliding tube:

Ø12mm, Ø16mm, material stainless steel, PP, PVDF, length selectable

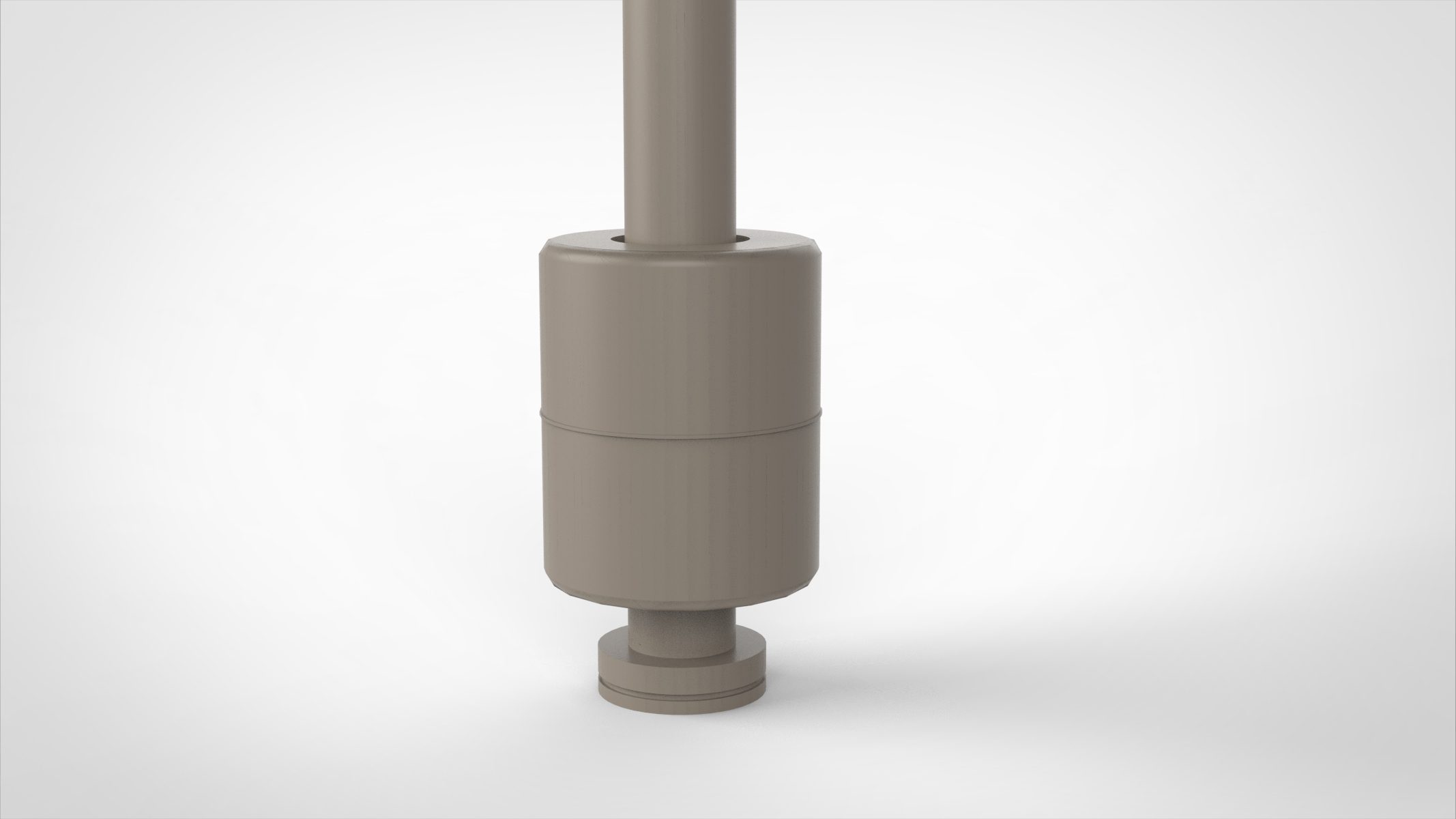

Float:

Material stainless steel, PP, PVDF; see data sheet for details

Resolution:

0.1mm

Function:

Analog level sensor, magnetostrictive

Output:

4…20mA or 0…10V

Operating temperature:

-20°C to 75°C

Typical Industries:

Chemical industry, Dosing & Filling industry, Electro plating
