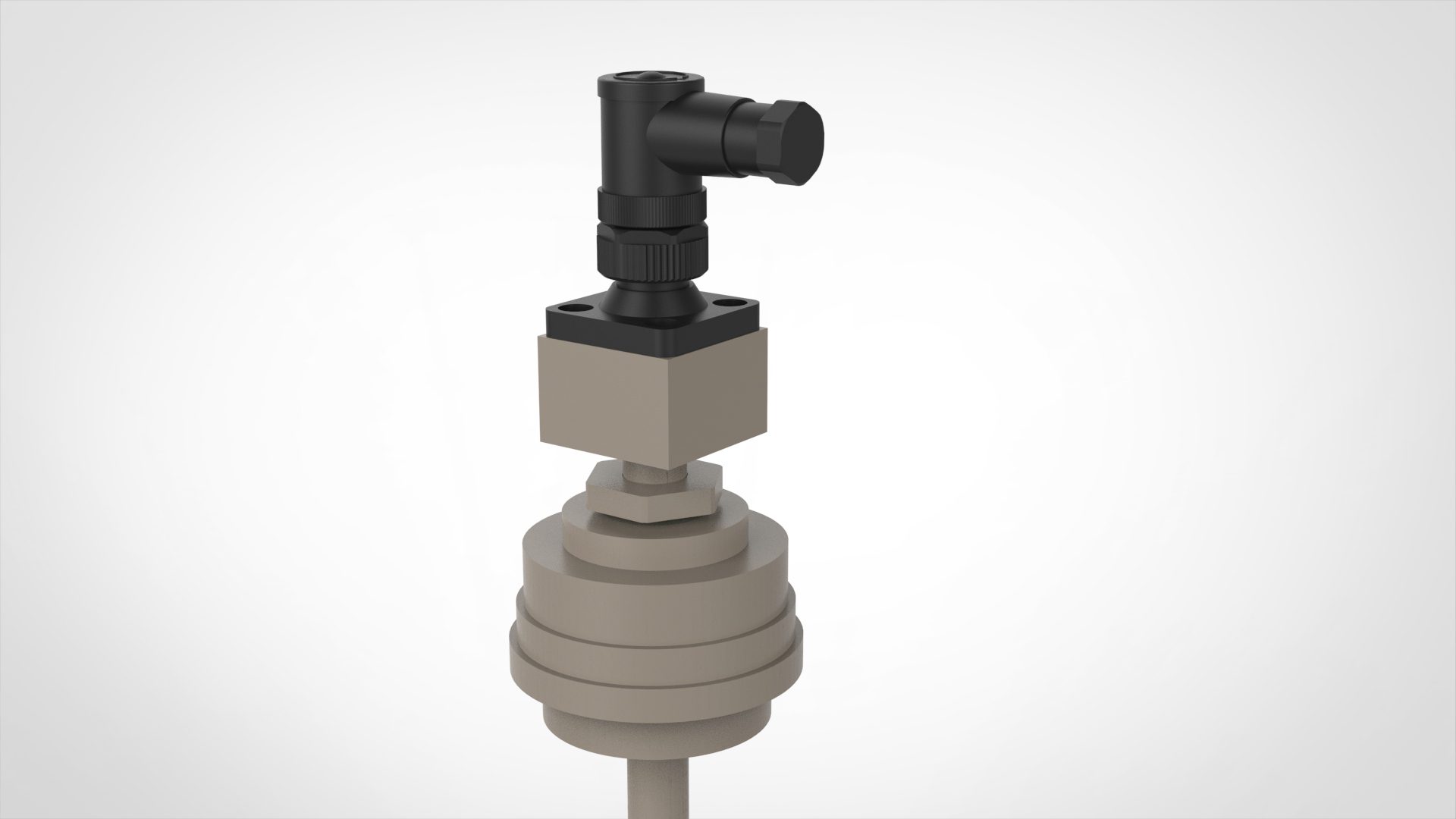

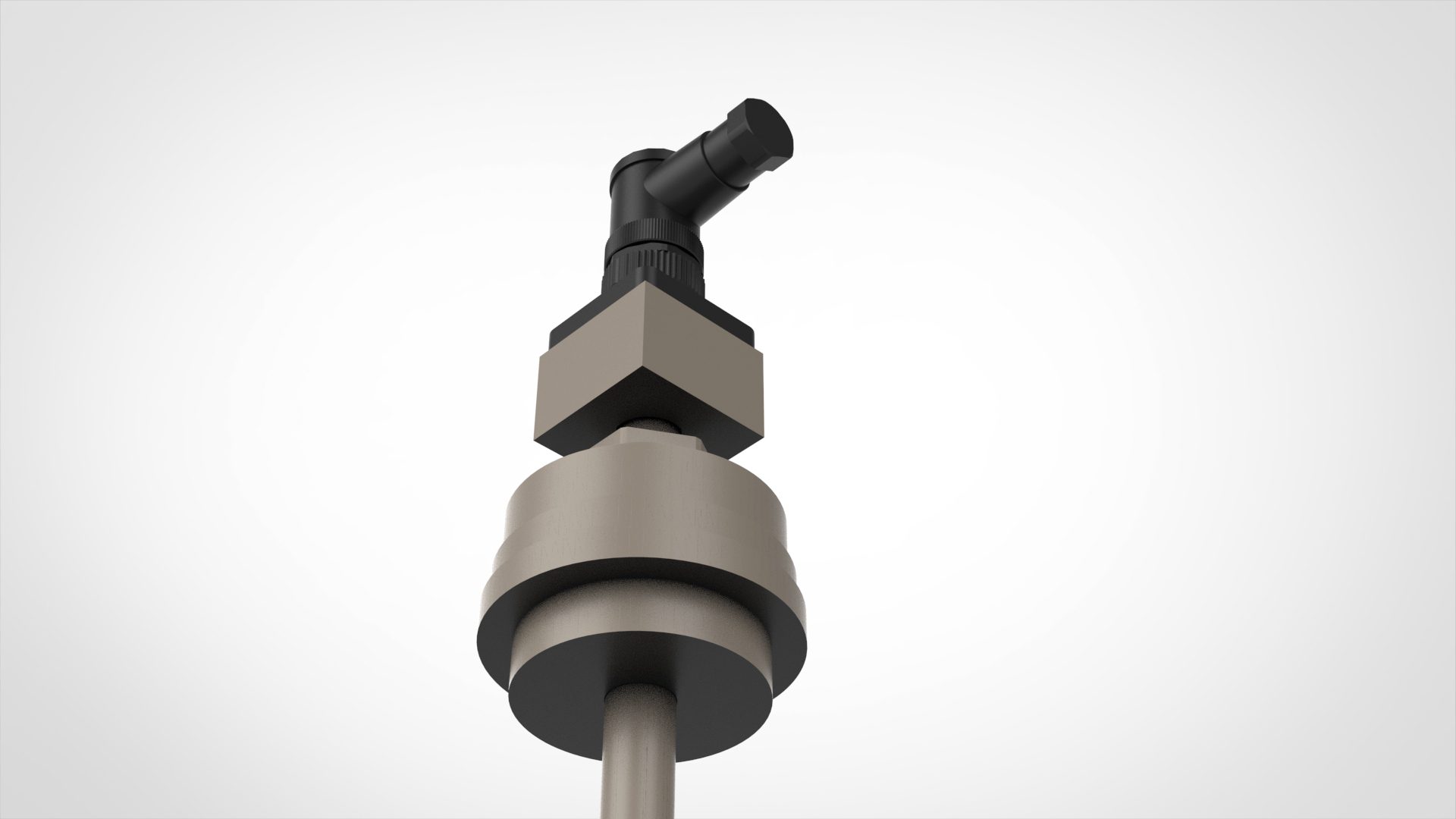

The version 97 float switch offers precise level measurement for many applications, e.g. in the petrochemical industry. Simple installation via an insert, connection via plug connection.

For precise technical details and model codes, please refer to our data sheet:

Do you need advice or are you looking for a bespoke solution? No problem! Our team will be happy to help you.

Connection:

M12x1 5-pin plug connection

Mounting:

Insert with depth adjustment, material PP

Sliding tube:

Ø12mm, material PP, length selectable

Float:

PP material, Ø40x40mm

Switching points:

max. 3x NO/NC/NO contact or 2x changeover contact

Switching capacity:

24VAC/ 150m

Temperature switch:

NC/NO contact/ NO contact bi-metal; see data sheet for details

Operating temperature:

-20°C to 80°C

Typical Industries:

Chemical industry, Dosing & Filling industry, Electro plating
