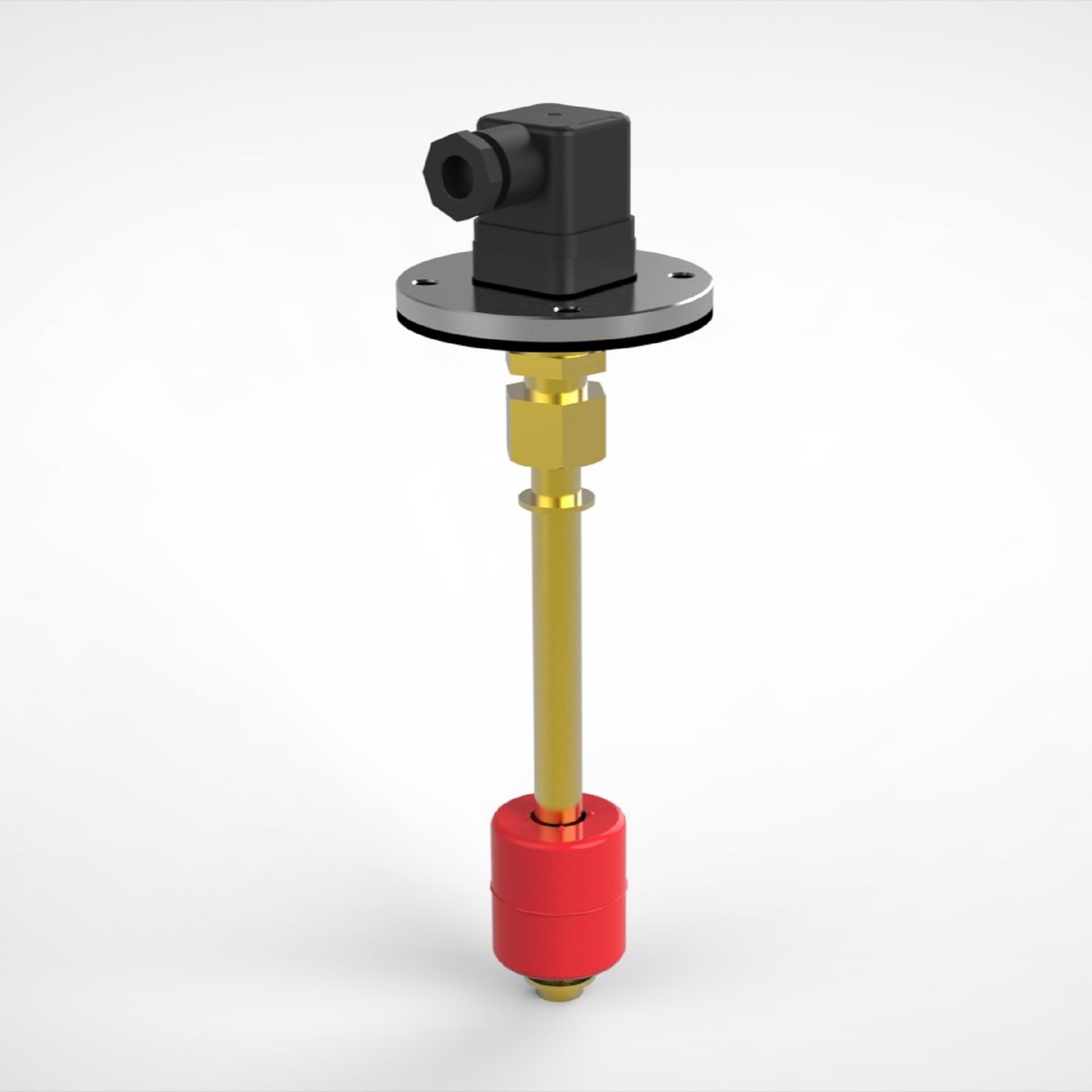

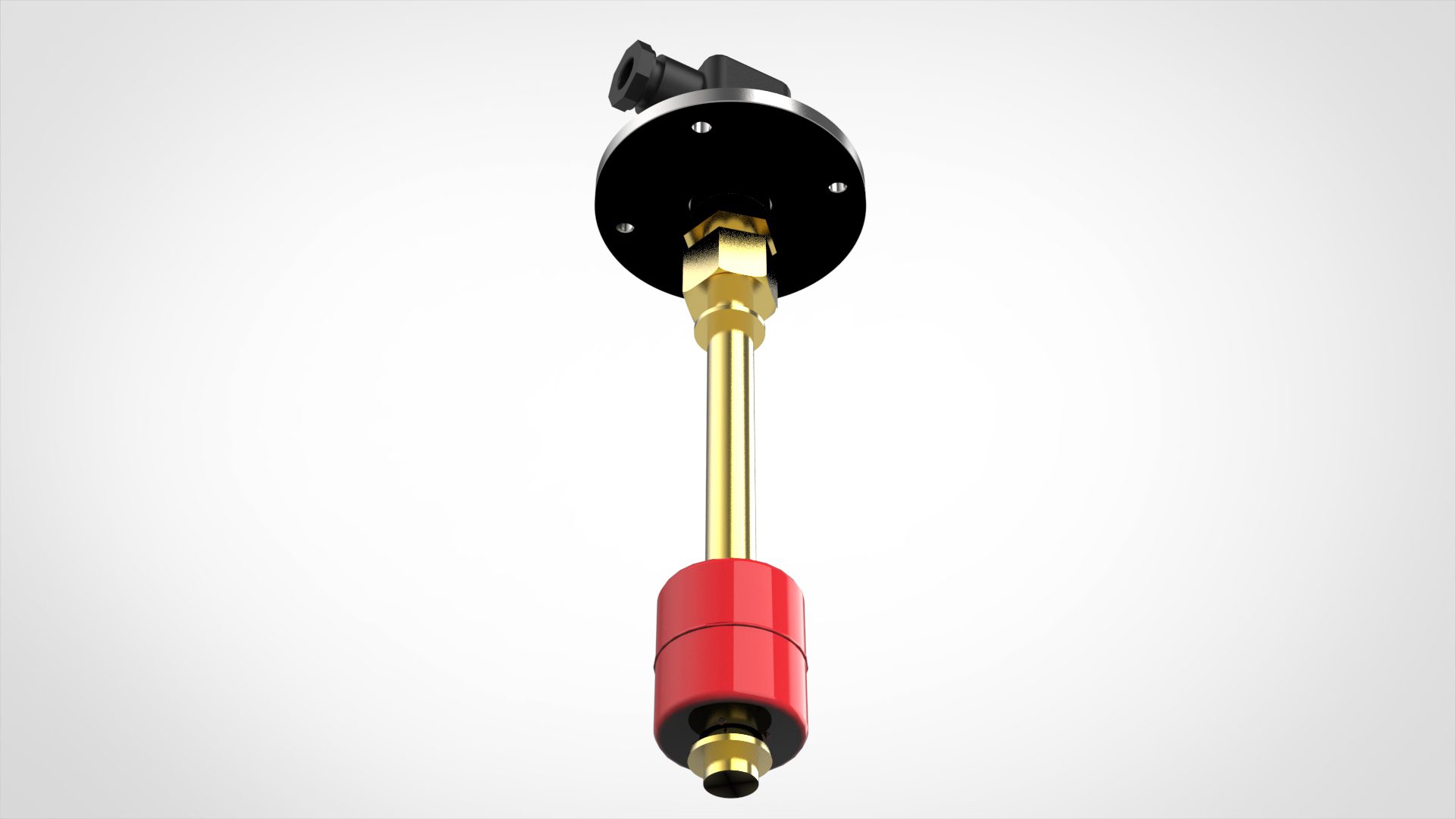

The float switch version 21 offers precise level measurement for many applications, e.g. in compressors. Simple installation via flange, connection via plug connection.

For precise technical details and model codes, please refer to our data sheet:

Do you need advice or are you looking for a bespoke solution? No problem! Our team will be happy to help you.

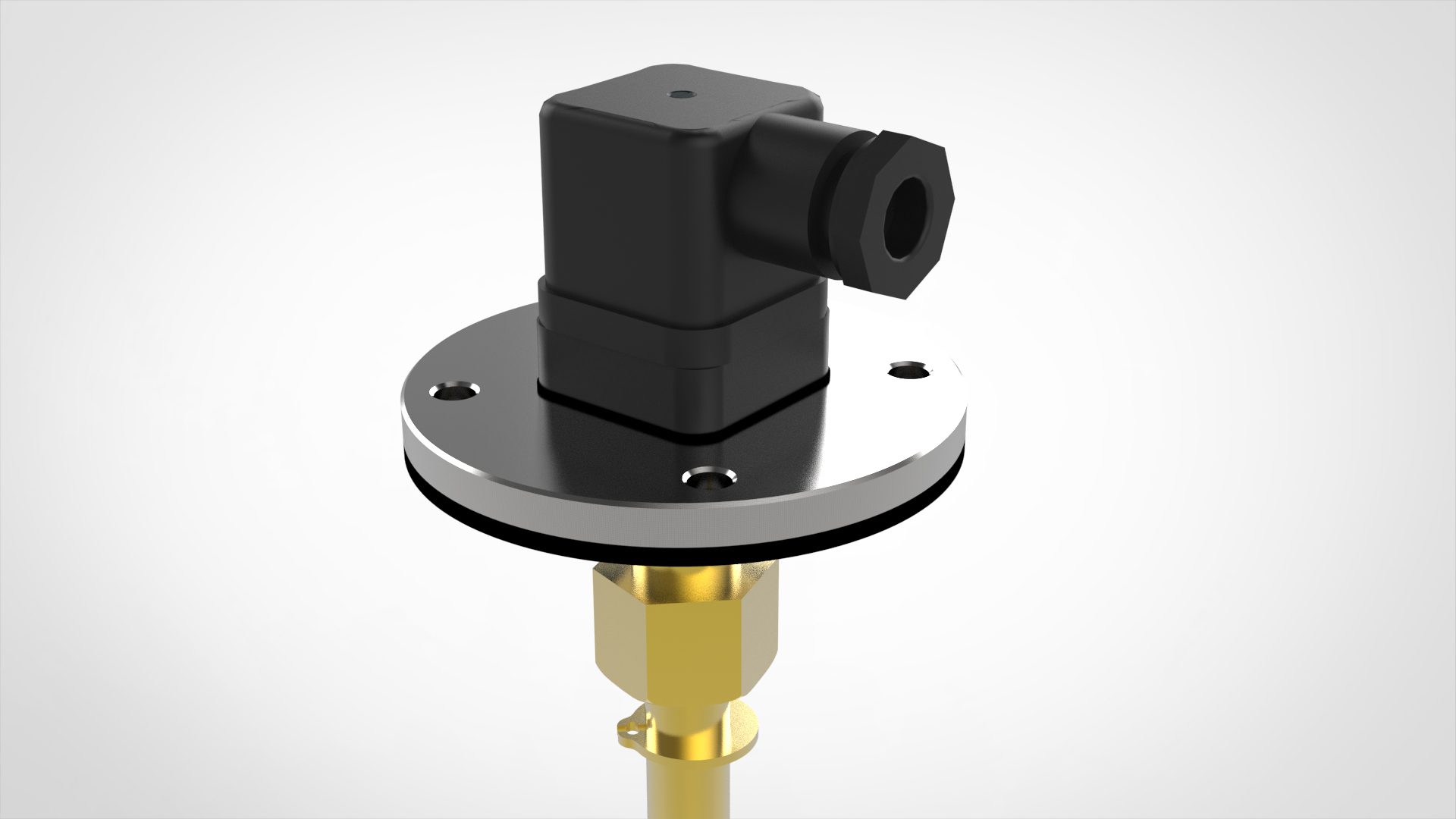

Connection:

3-pin plug connection + PE DIN EN 175301-803 (DIN 43650)

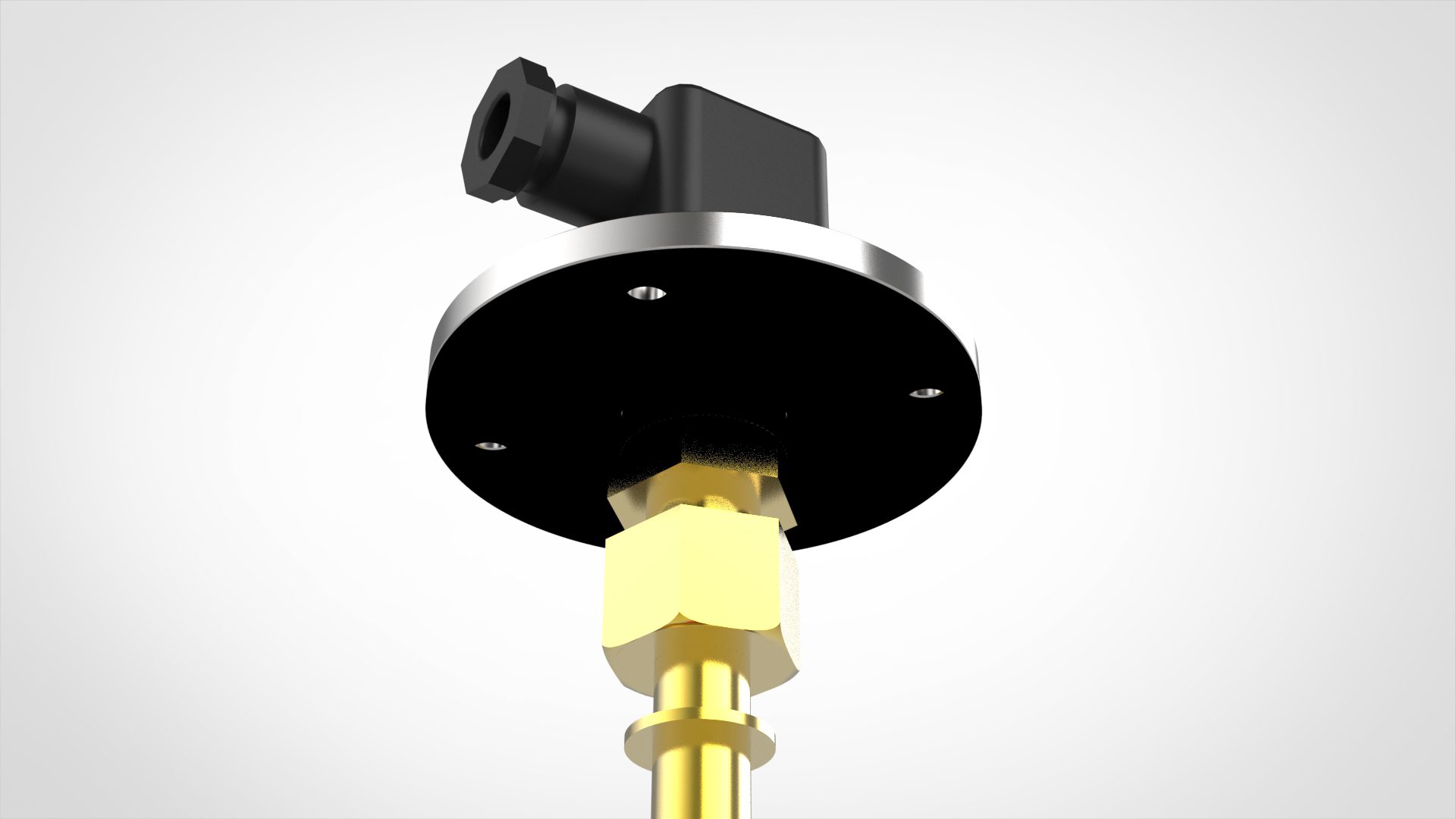

Mounting:

Flange round AD74 LK60, material aluminum

Sliding tube:

Ø12mm, material brass, length selectable

Float:

Material stainless steel, PP; see data sheet for details

Switching points:

max. 2x NO/NC or 1x changeover contact

Switching capacity:

230VAC/ 1A / 60VA

Temperature switch:

NC/NC bi-metal; see data sheet for details

Operating temperature:

-20°C to 80°C

Typical Industries:

Machinery & Plant engineering, Hydraulic power units, Wind energy
