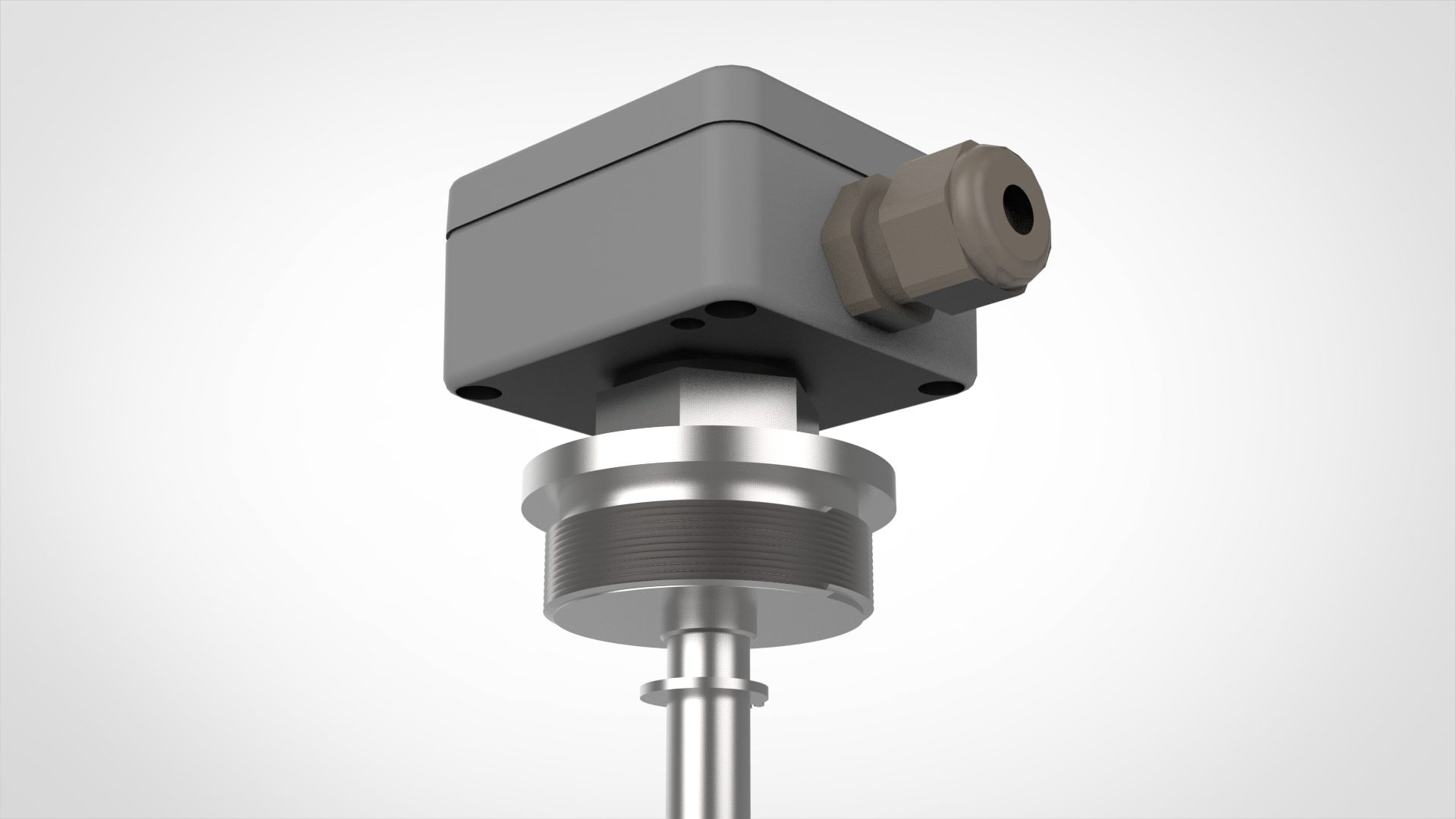

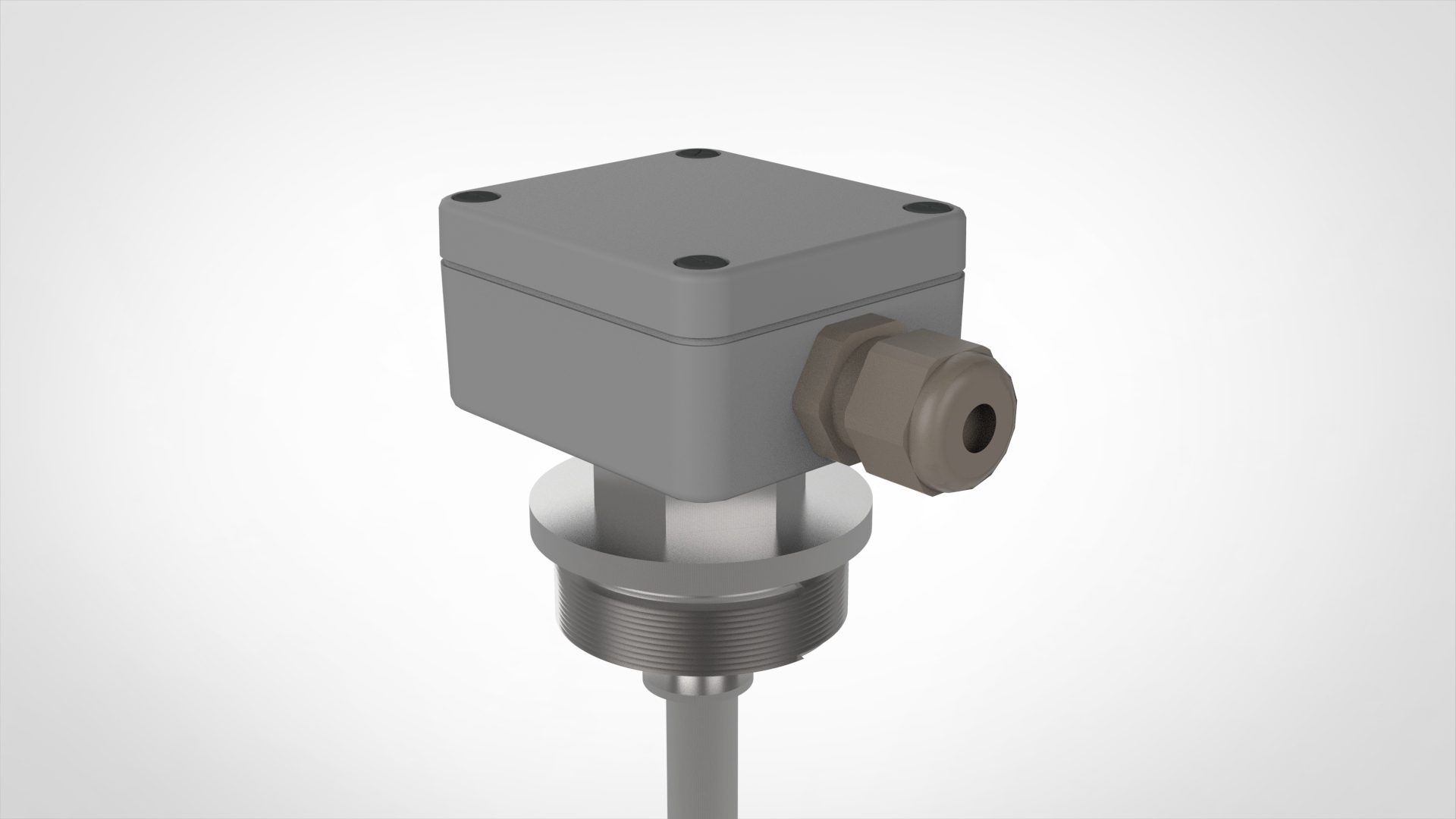

The float switch version 7 offers precise level measurement for many applications, e.g. in cooling systems. Installation via 11/2″ screw connection, terminal connection in the housing.

For precise technical details and model codes, please refer to our data sheet:

Do you need advice or are you looking for a bespoke solution? No problem! Our team will be happy to help you.

Connection:

Terminal connection in the housing, aluminum material

Mounting:

1 ½“ screw connection, stainless steel material

Sliding tube:

Ø12mm, stainless steel material, length selectable

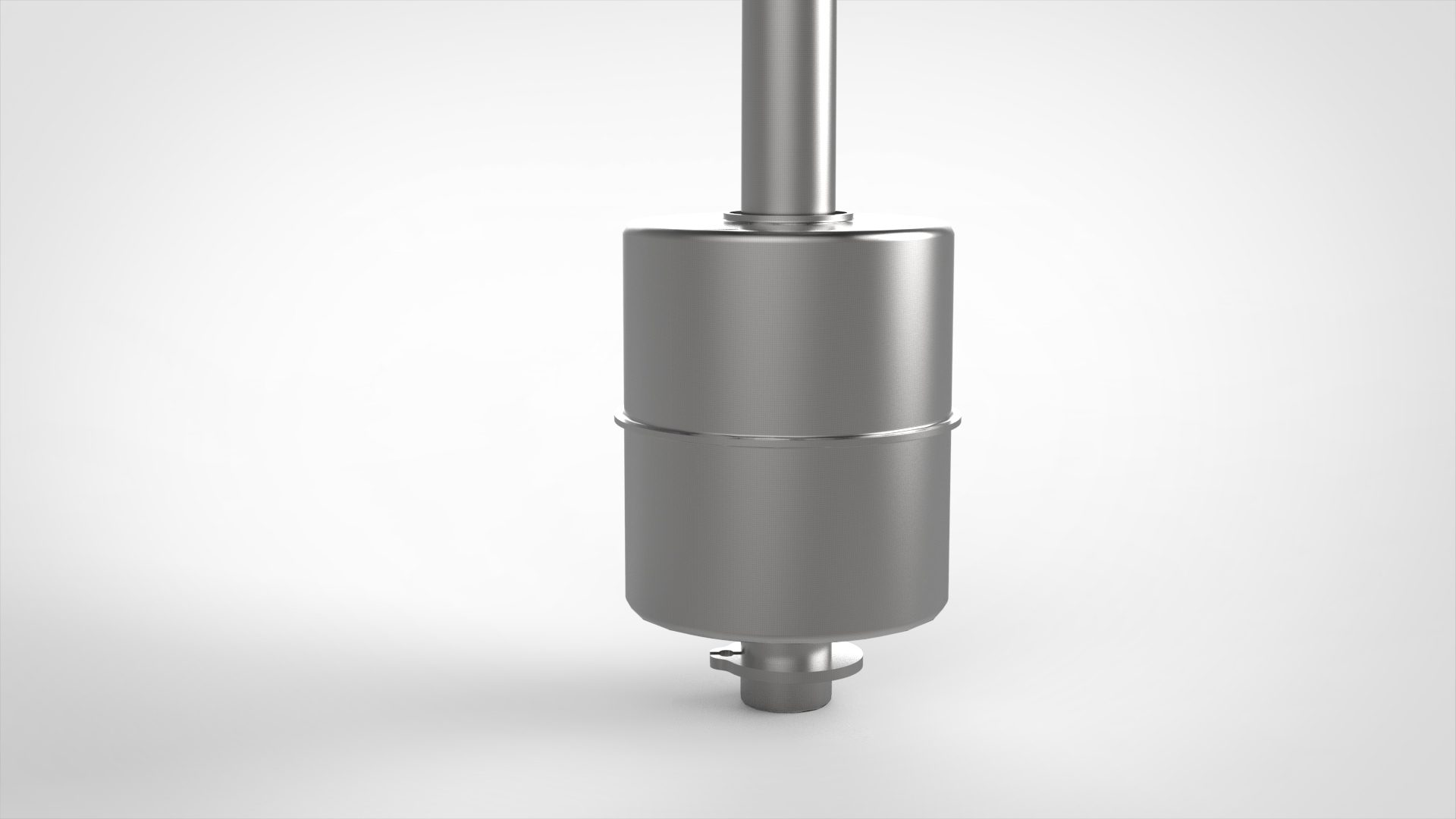

Float:

stainless steel, PP; see data sheet for details

Switching points:

max. 3x NO/NC/NO contact or changeover contact

Switching capacity:

230VAC/ 1A / 60VA

Temperature switch:

NC/NO contact/ NO contact bi-metal; see data sheet for details

Operating temperature:

-20°C to 100°C, depending on material

Typical Industries:

Food industry, Offshore industry, Ship technology, Water treatment
